Lumileds Versat2016 Demonstrator ‘24
Automotive product design
Design of signature DLR & position light, with Individually addressable LEDs for full dynamic, modular, high-pixel count lighting solutions, following car body surfaces, while utilizing flat PCB boards.
For more info check out the Lumileds product page…
Design: Sikko Valk & Marco van Overbeeke
CAD / Engineering for physical prototyping: Sikko Valk
Development in collaboration with the Lumileds innovation team
Optical design: Lumileds innovation team
Images: Sikko Valk
Project Scope
Physical LED demonstrator design development for presentation at live-events
Innovative LED technology USP’s communicated through design with clear structural and visual modularity / flexibility / adaptability / scalability.
Concept Ideation and propositions
Structural Product Design
Optical Architecture
CAD development & Engineering for physical prototype(s) (event demonstrators)
Design for Dis-/Re-assembly
Optical architecture and performance
Easing the system implementation of dynamic high-pixel count signature lighting:

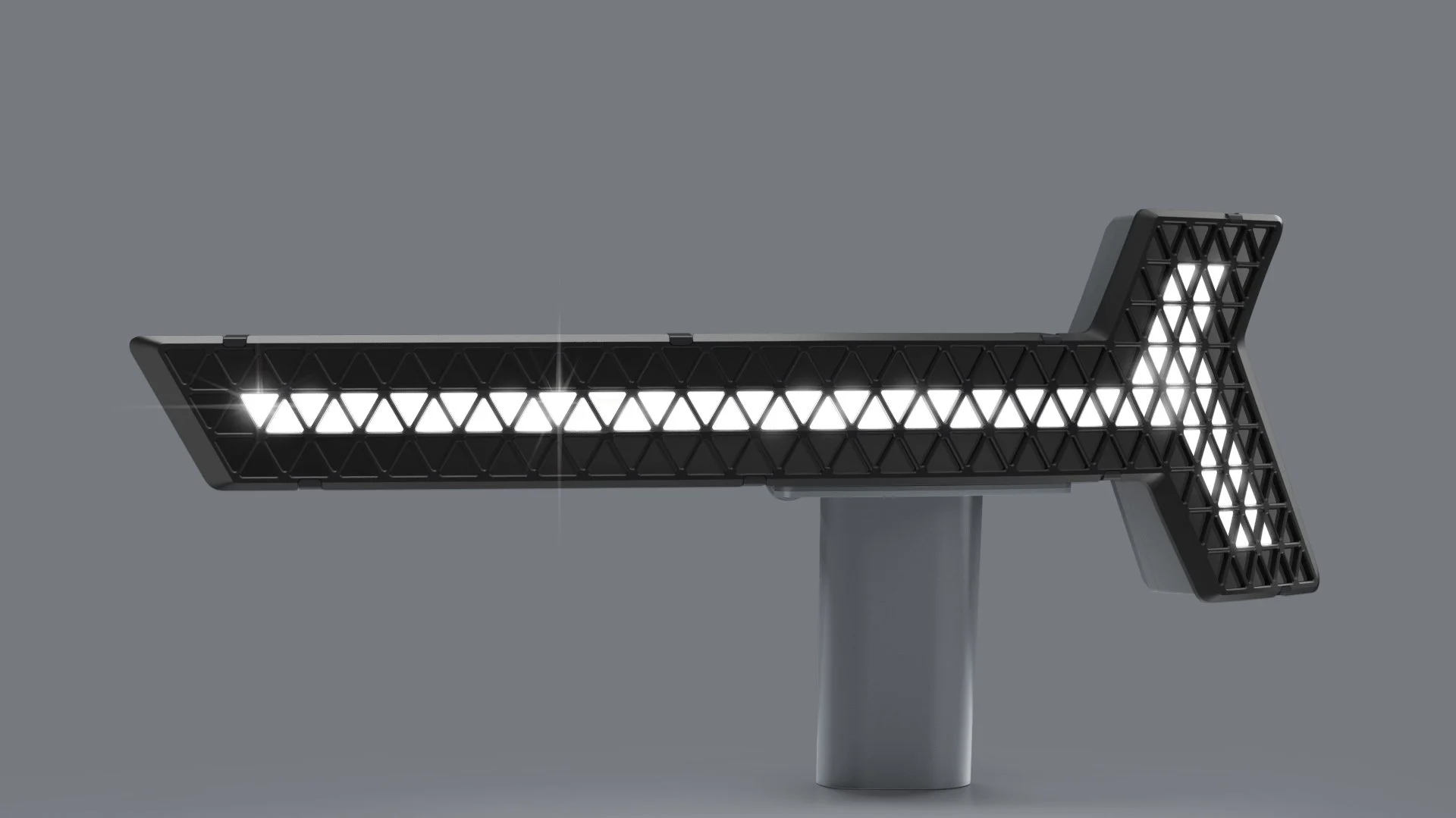

Distinctive signature luminaire for DRL and position, following car curvature
Optimized collimator lens giving uniform look to each triangle
Diffuse film cover for smooth appearance and wide bundle

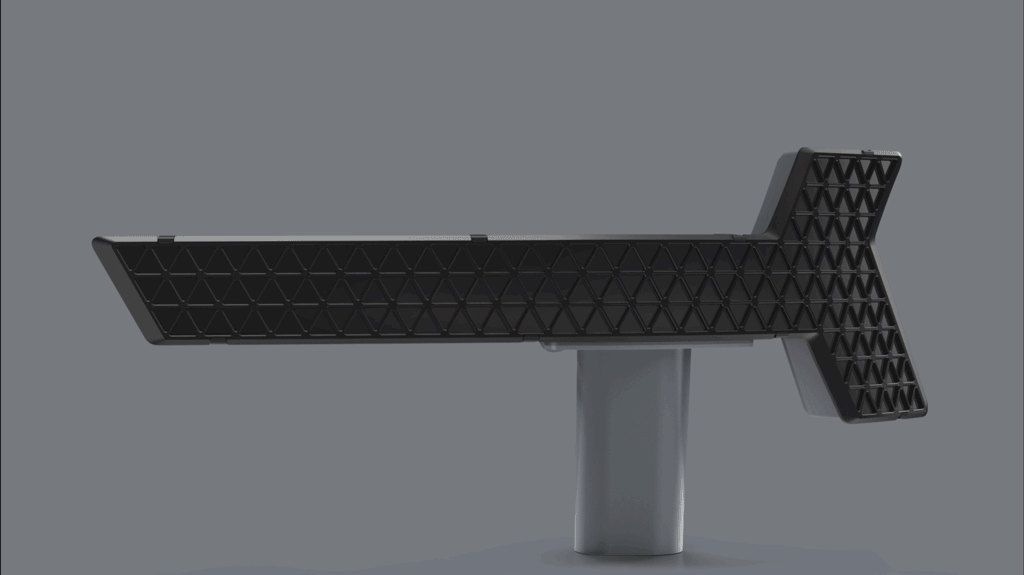

Triangular cells oriented to follow car-body contours enable smooth lit appearance from multiple viewing angles
In this setup, 192 individual addressable LED’s & lenses

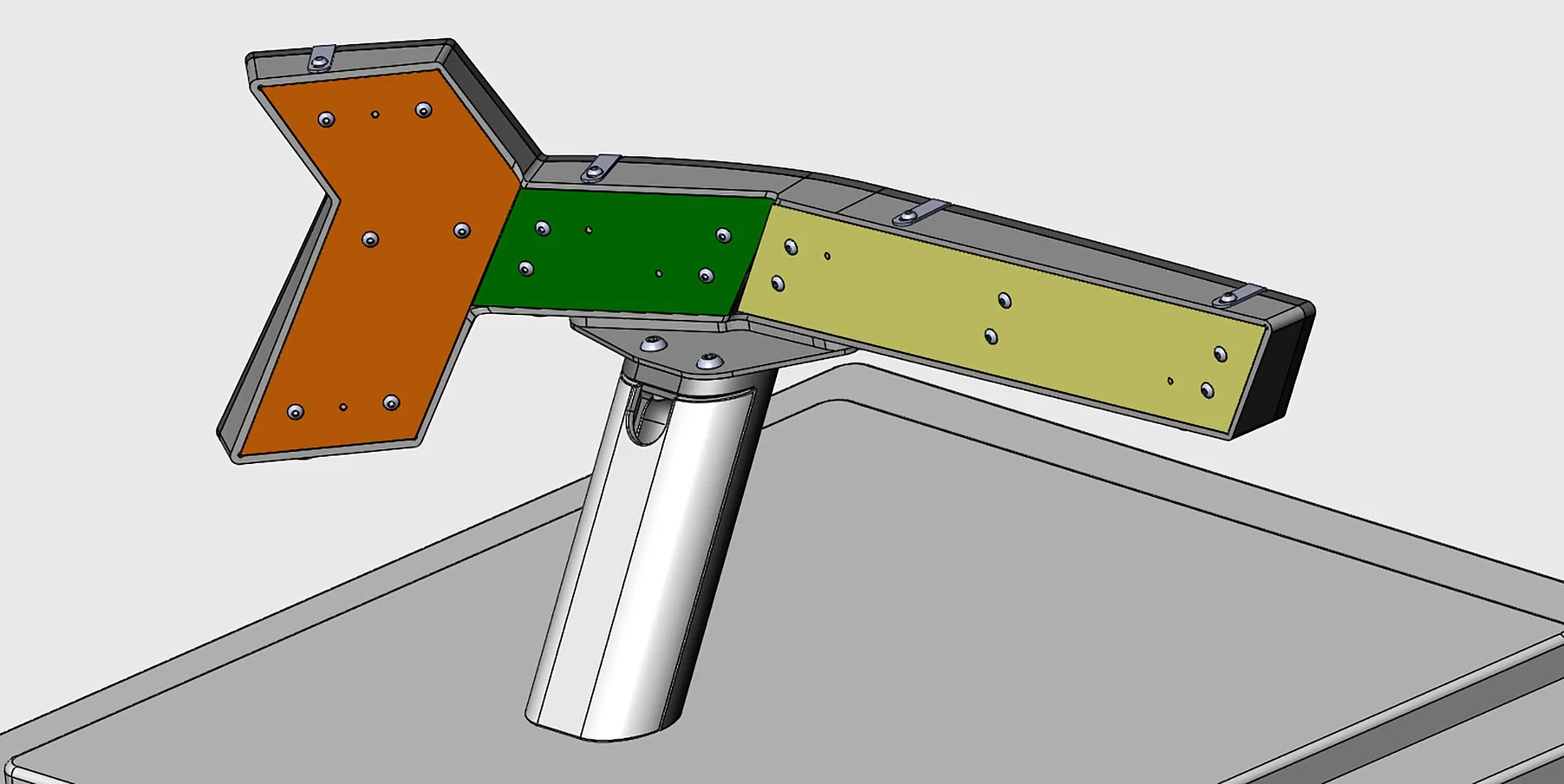

Design locates all electronic components on three planar FR4 PCBs

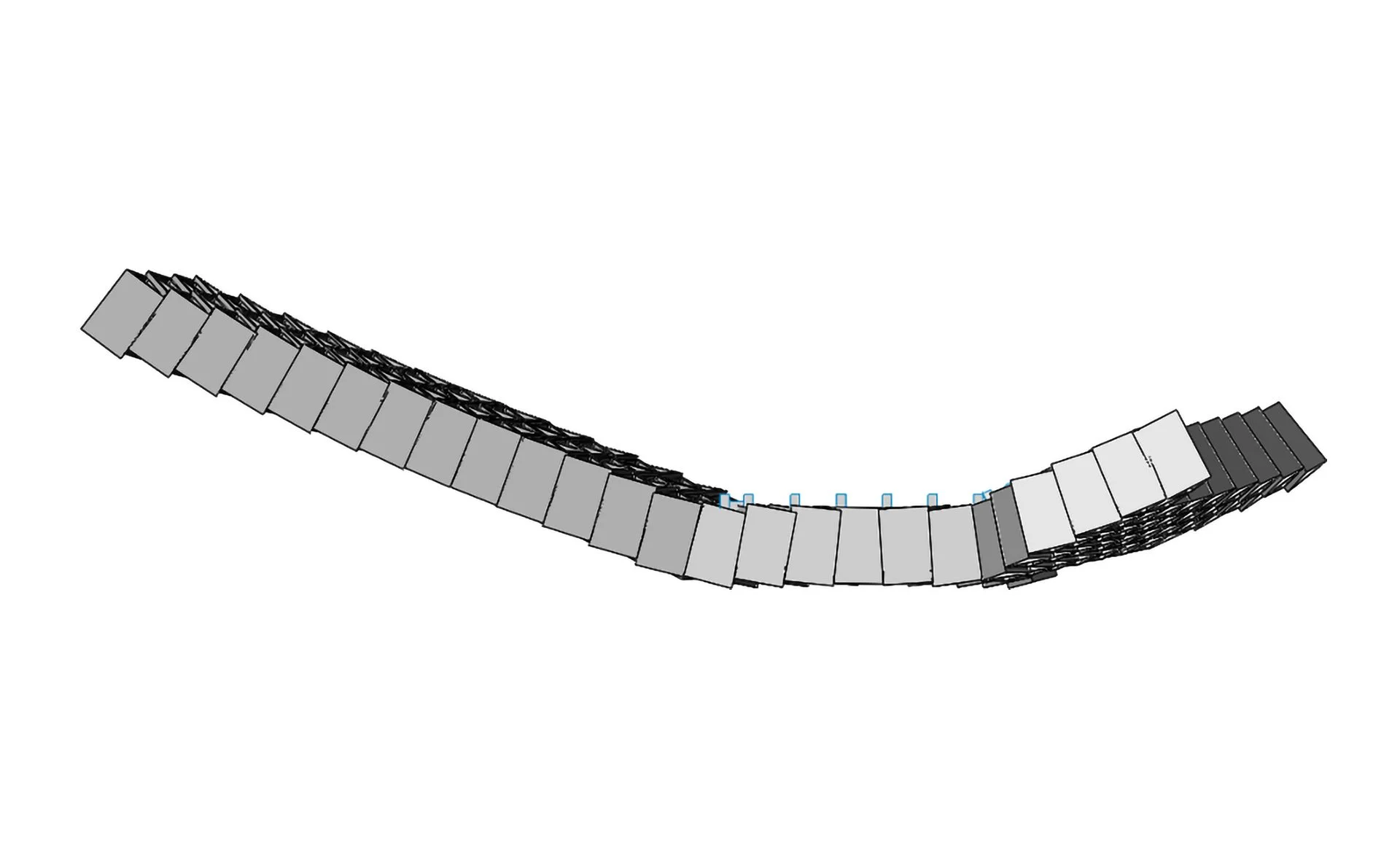

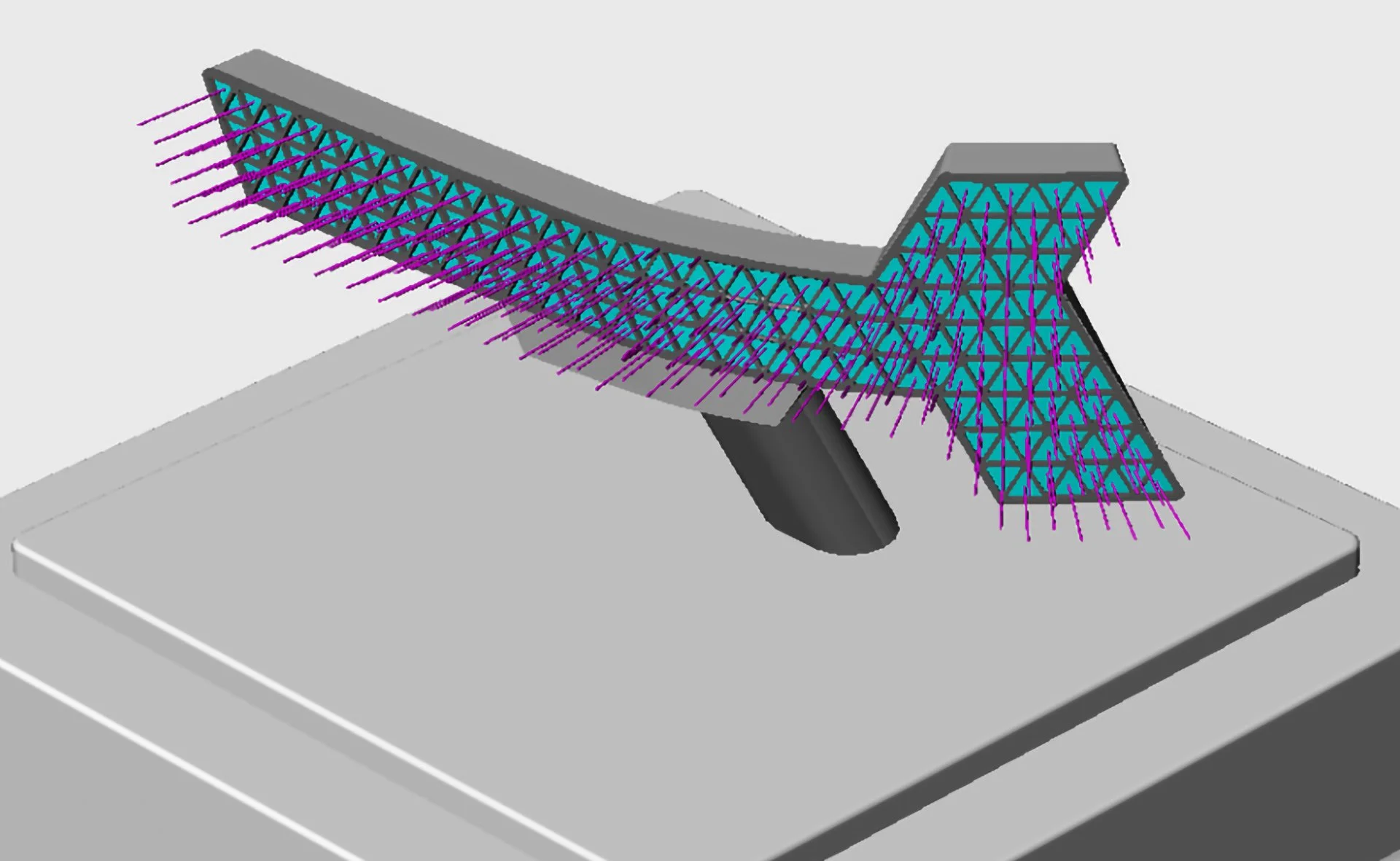

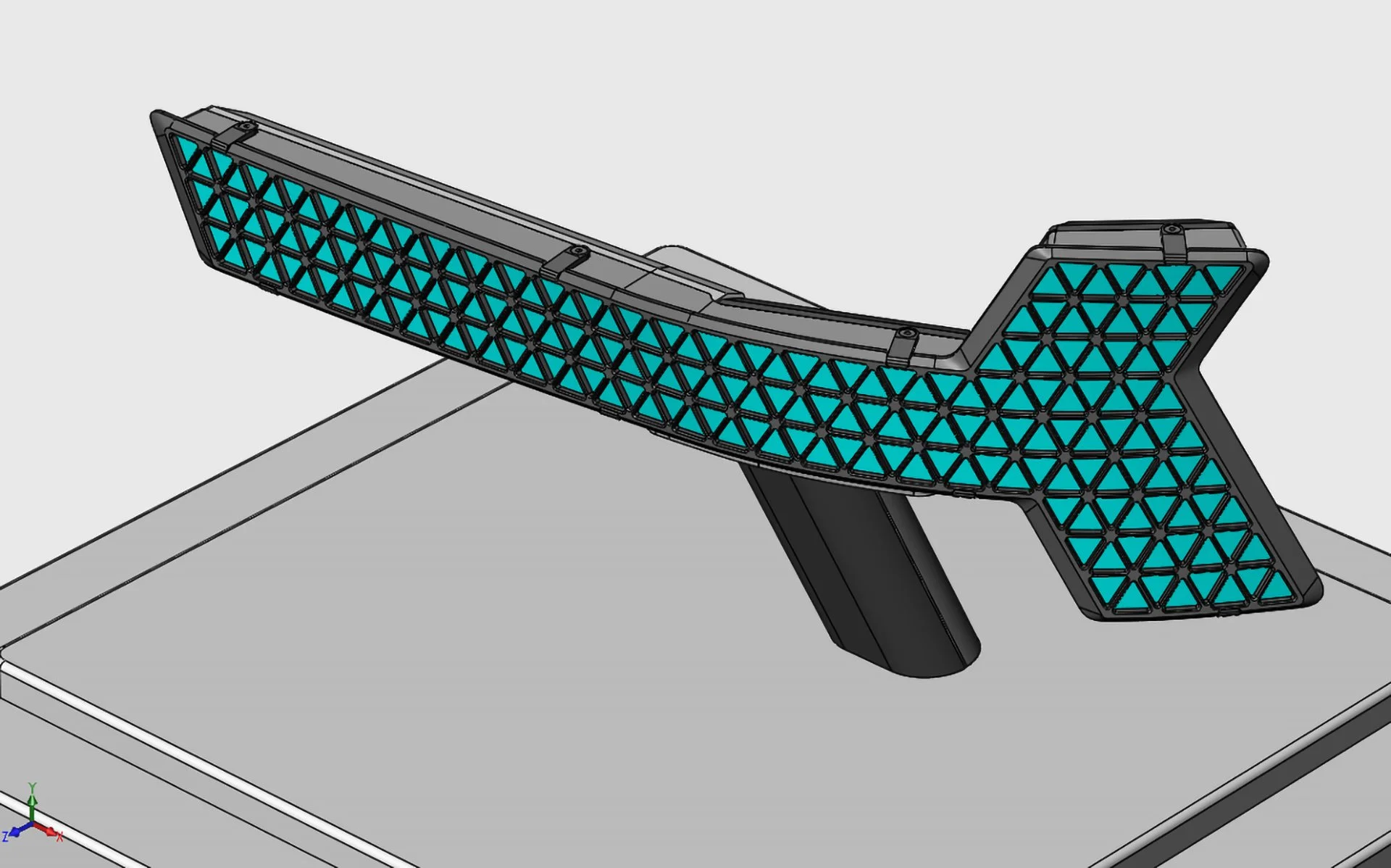

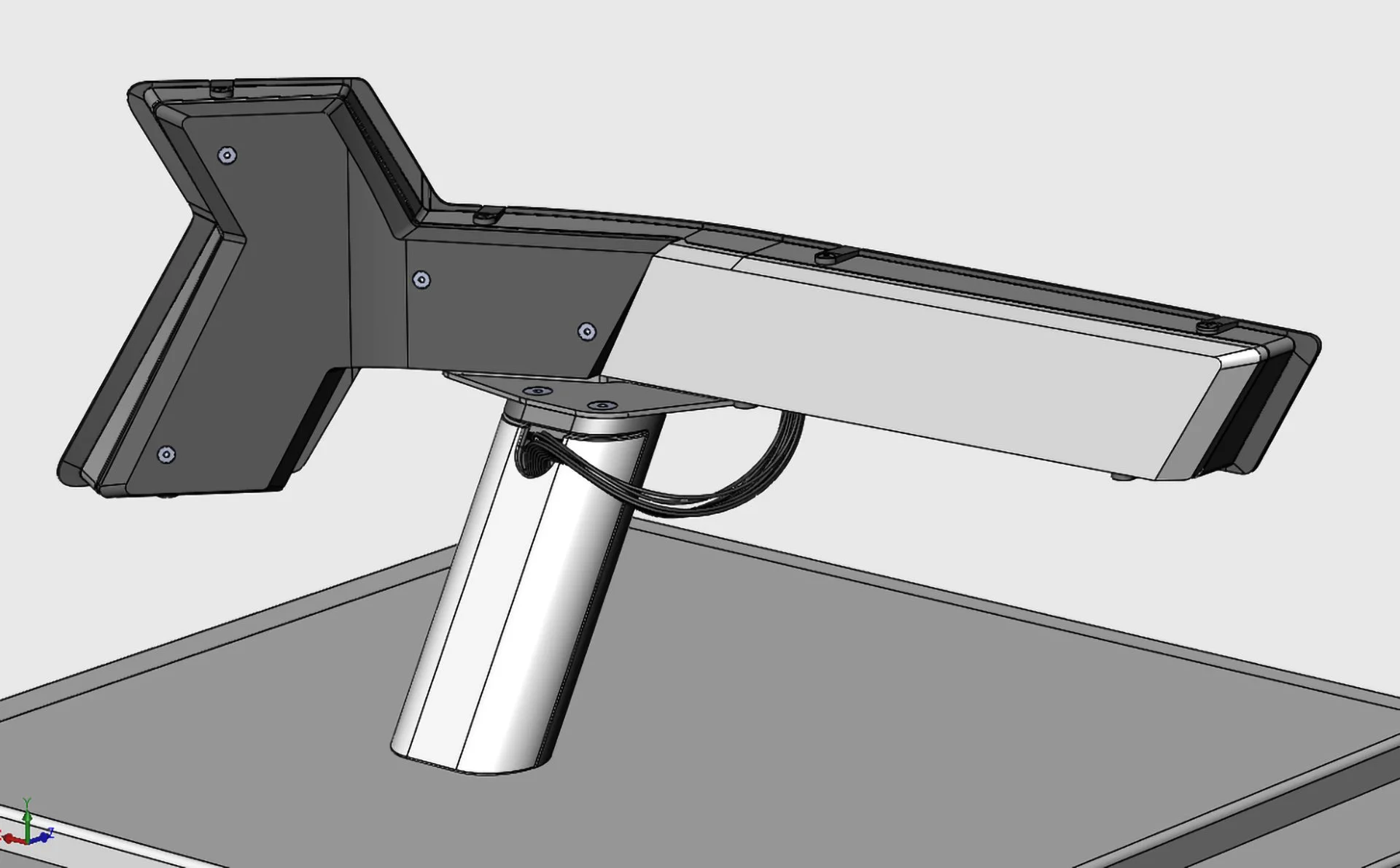

Below, several screens of work-in-progress CAD development
